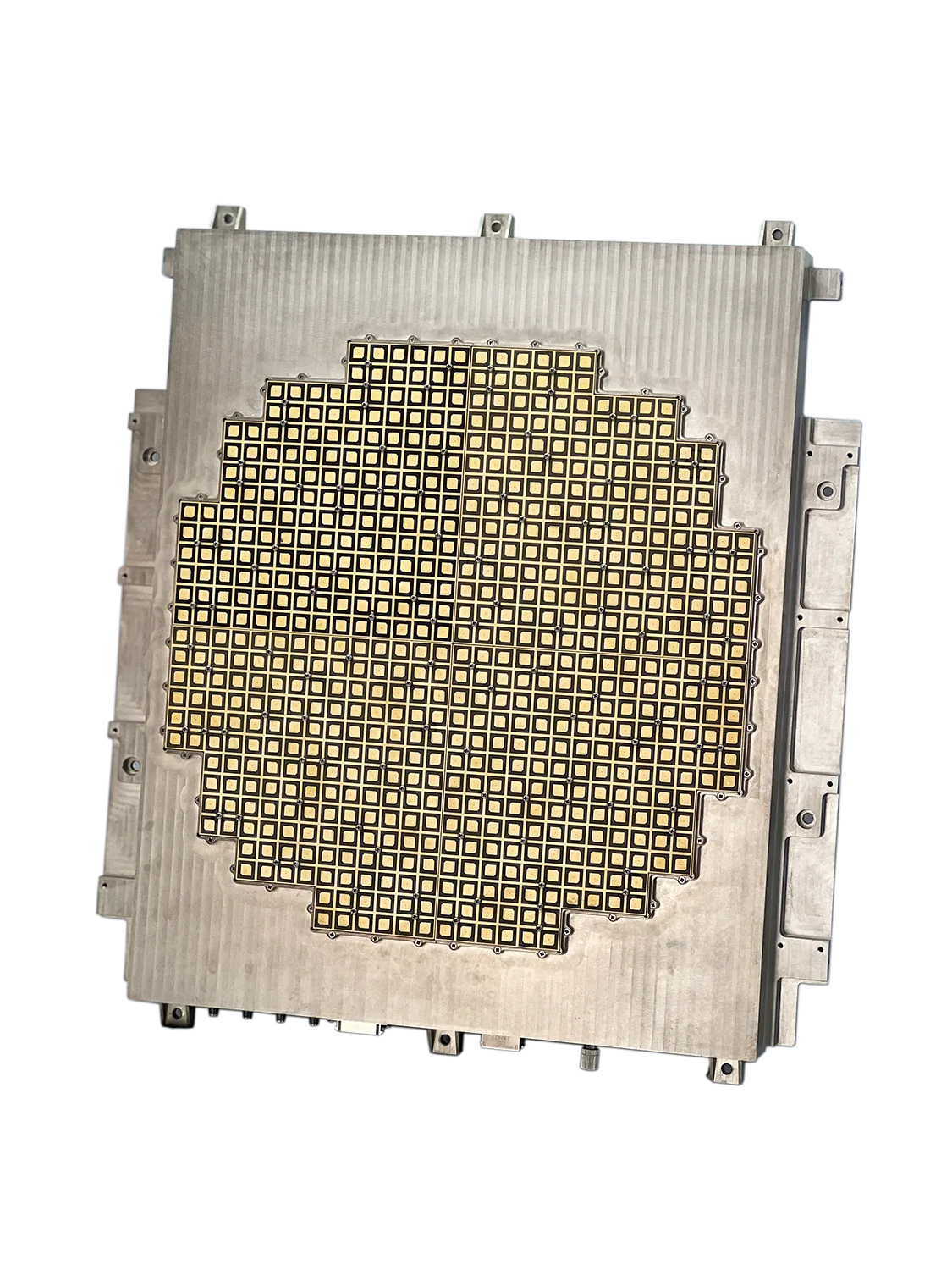

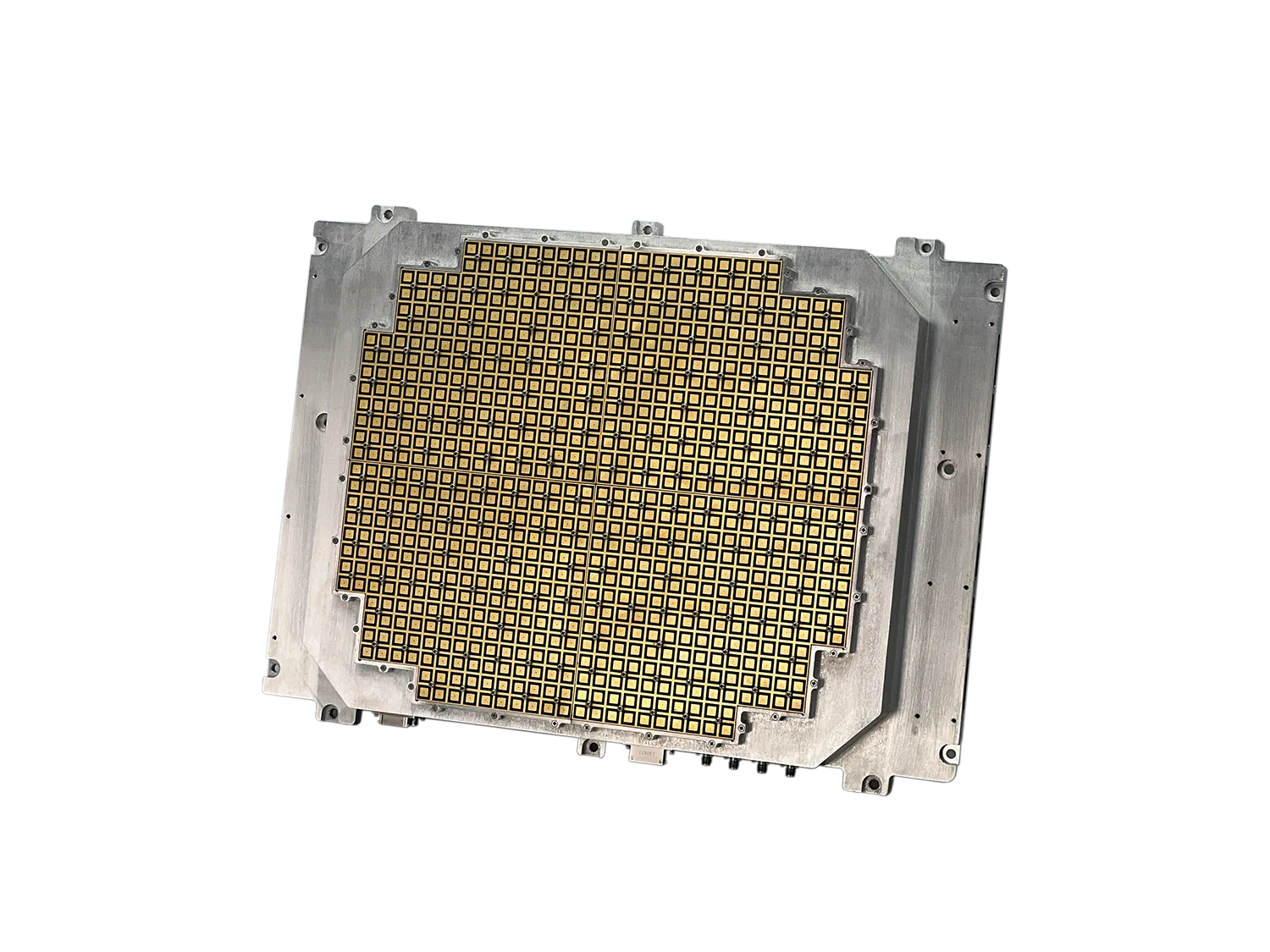

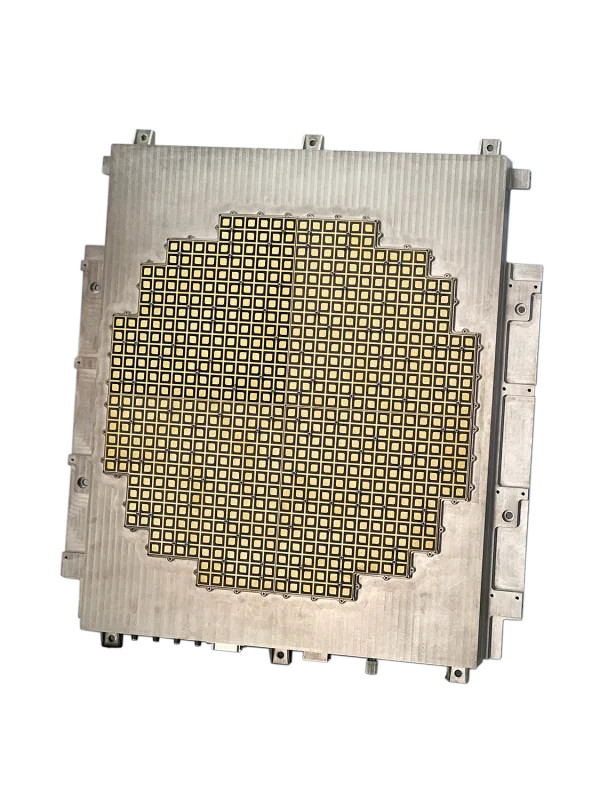

Ku-band Spaceborne Silicon-based Multi-beam Phased Array Antenna
- Low-cost flat panel design
- Supports 4 transmitting beams with 250 MHz
- bandwidth per beamSupports 4 receiving beams with 125 MHz bandwidth per beam
- Supports multi-beam positioning
- Radiation-hardened capabilities
- Operational life span: 7 years
TECHNICAL PARAMETERS
| Items | Parameters | Remarks | |
| Working Frequency | Tx | 10.7GHz~12.7GHz | |
| Rx | 14.0GHz~14.5GHz | ||
| Beams | Tx | 4 | |
| Rx | 4 | ||
| EIRP | ≥73dBm@11.7GHz | Normal direction | |
| G/T | ≥5dB/K@14.25GHz | Normal direction | |
| Scanning Range | Azimuth | 0~360° | |
| Off-axis | ±60° | ||
| Polarization | Tx | RHCP | |
| Rx | LHCP | ||
| Power Consumption | Tx | ≤330W | |
| Rx | ≤110W | ||
| Power Supply | DC 42V | ||
| Dimensions | Tx | 476*425*45mm | Connector excluded |
| Rx | 460*340*37mm | Connector excluded | |
| Weight | Tx | ≤7.5kg | |
| Rx | ≤6kg | ||
| Transmitting System External Interfaces | IF Interface | SMA-K | |
| Control Interface | J30JA-21ZK | ||
| Power Interface | J36A-9ZJB | ||
| Receiving System External Interfaces | IF Interface | SMA-K | |
| Control Interface | J30JA-21ZK | ||
| Power Interface | J36A-9ZJB | ||
