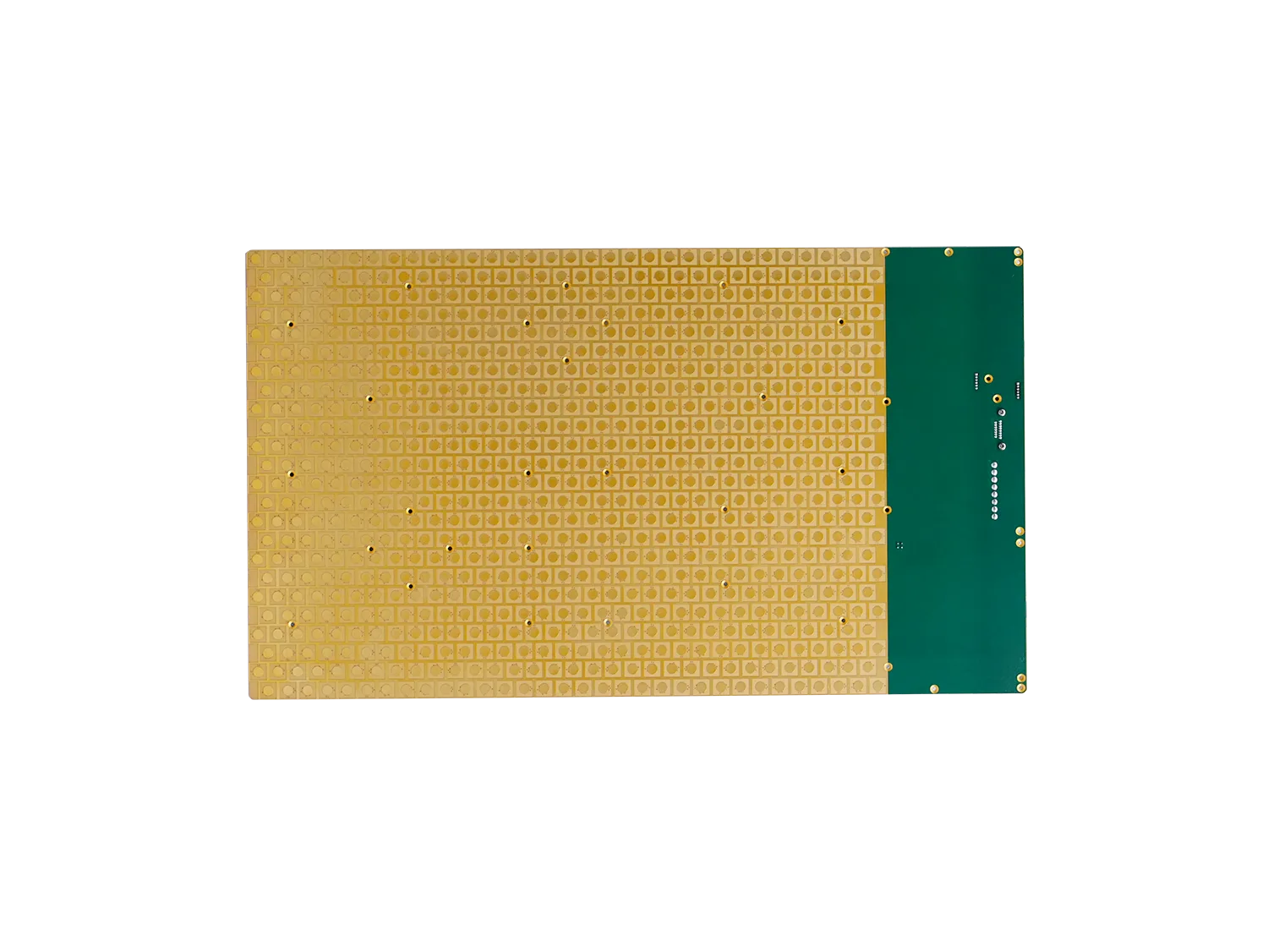

Ku-band Phased Array Antenna 768-element Tx Subarray
- 768-element standard subarray, expandable for larger arrays
- Low power consumption
- Beam scanning range: ±70°
- High-power CMOS power amplifier
- 12V power supply
- RS422 communication interface for control system
TECHNICAL PARAMETERS
| S/N | Items | Technical Parameters | Remarks |
| 1 | Working Frequency | 13.75GHz to 14.5GHz | |
| 2 | Scanning Range | ±70° | |
| 3 | EIRP | ≥75.9dBm @14.1GHz | P1dB |
| 4 | Input P1dB | ≤6.0dBm | |
| 5 | Beam Width | 2.9° ± 0.2° @14.1GHz, normal direction | |
| 6 | Pointing accuracy | ≤1/8 3dB beamwidth | |
| 7 | Sidelobe Suppression | ≥12dB @ Normal direction | |
| 8 | Polarization | Full Polarization | |
| 9 | Cross Polarization Isolation | ≥30dB @ Normal direction | |
| 10 | Polarization Switching Time | ≤0.5ms | |
| 11 | Beam Switching Time | ≤0.3ms | |
| 12 | Dimensions | 415.95mm*240mm*14.0mm | |
| 13 | Weight | ≤1.2Kg | |
| 14 | Input Voltage | DC12V ± 1V | |
| 15 | Power Consumption (P1dB) | ≤190W | |
| 16 | Working Temperature | -40 ℃ ~ 70 ℃ |
