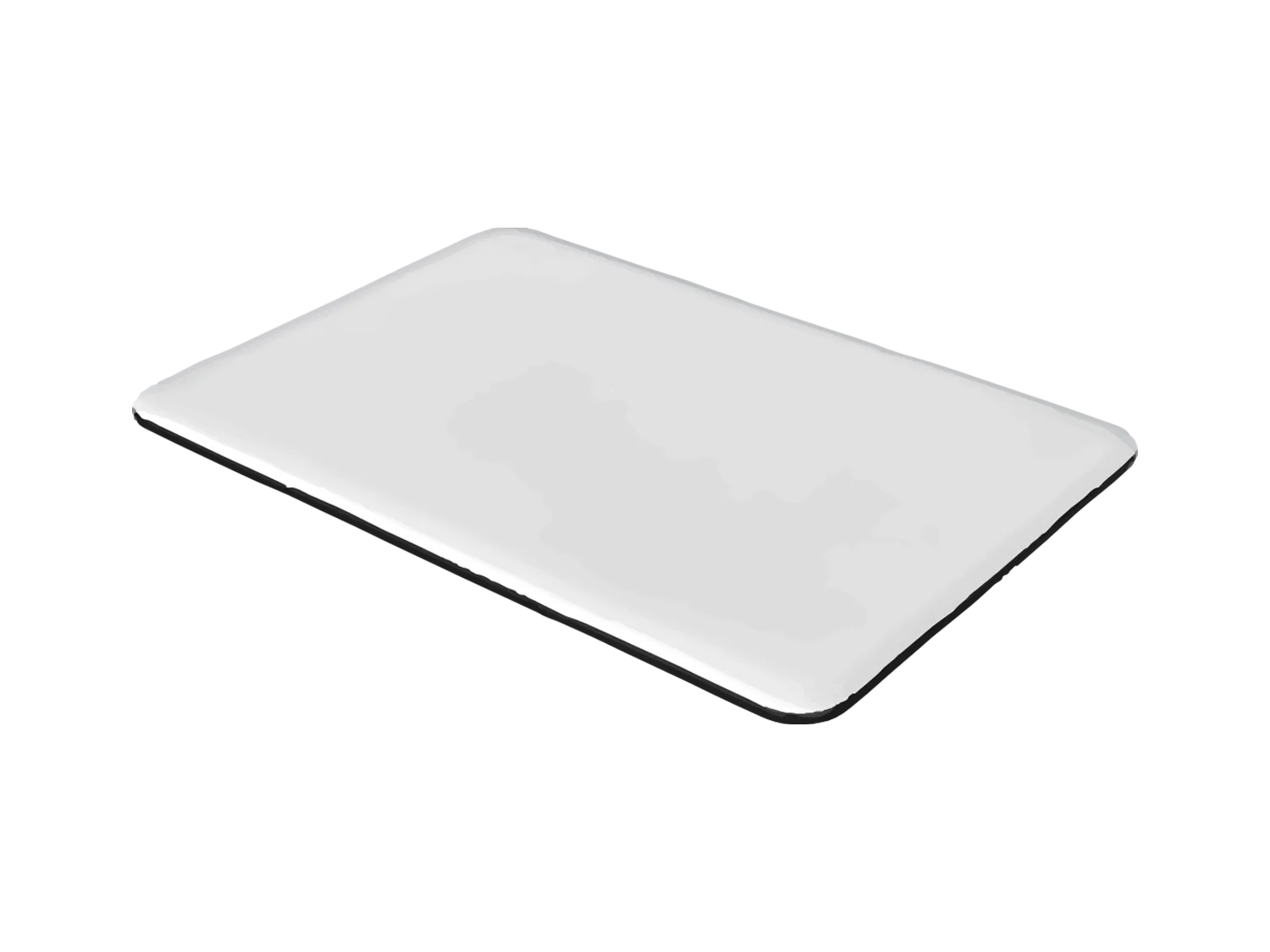

Ku-band 2T2R GEO&LEO SATCOM Phased-array Terminal
The Ku-band 2T2R SATCOM Terminals a high-performance version of the GEO&LEO compatible terminal It supports GEO satellites like Asia-Pacific 6D/6E and LEO satellites like Qianfan constellation. It has built in GEO&LEO dual-modems and shares 2T2R two-dimensional full-electric scanning active phased array antenna. It is highly integrated with phased array antenna up-down conversion, inertial navigation unit antenna control unit, modem and other components meeting the user’s GEO&LEO satellite network connection needs in the case of mobile communication.
TECHNICAL PARAMETERS
| Antenna Type | Two-dimensional full-electric scanning active phased array antenna |
| Working Frequency | Rx: 10.7~12.75GHz; Tx: 13.75~14.5GHz |
| Duplex Mode | FDD (Full Duplex) |
| Array Configuration | 4 pcs, with 2 Tx and 2 Rx 768-element arrays |
| Polarization | Arbitrary linear polarization/arbitrary circular polarization, switchable |
| Scanning Range | Azimuth: 0° ~ 360°; Elevation: 0° ~ 65° |
| EIRP | ≥48dBW @0° linear polarization; ≥42dBW @65° linear polarization ≥45dBW @0° circular polarization; ≥39.5dBW @65° circular polarization |
| G/T | ≥12dB/K@11.7GHz, Broadside; ≥5.5dB/K@11.7GHz @65° |
| XPD | ≥30dB @90° |
| Max Tracking Error | ≤0.5dB |
| IF | GEO: Rx: 950~2150MHz; Tx: 950~2400MHz LEO: Rx: 2.0GHz; Tx: 4.0GHz |
| WiFi | Support dual-band WiFi function, with accesses: ≥8 |
| Interface | LAN port: 2; Power: 1; RF Testing port: 1 |
| Dimensions | ≤1050mm x 700mm x 50mm |
| Weight | ≤25kg |
| Operating Voltage | 48V DC, standard 220V AC to 48V power adapter |
| Power Consumption | ≤700W |
| Working Temperature | -40℃ ~ 55℃ |
| Storage Temperature | -40℃ ~ 80℃ |
| Humidity | 10% ~ 95% (35℃) |
| Protection | IP65 |
| Wind Resistance | 120km/h |
| Reliability | Shock-resistant, Vibration-resistant, Low-pressure resistant, Solar radiation resistant, Salt-fog resistant |
| Certification | CCC |
