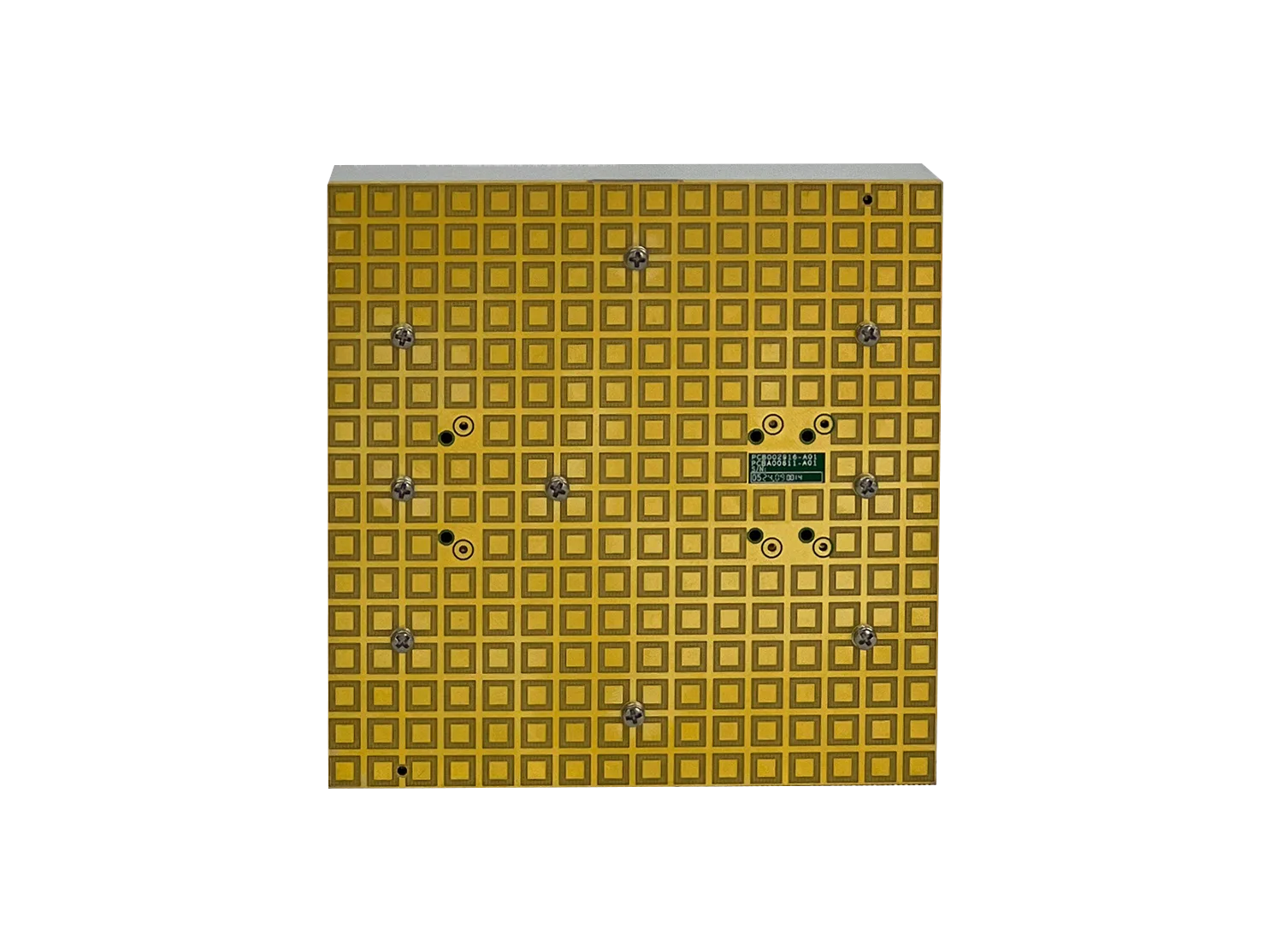

Ka-band 2D Expandable Phased Array Antenna Tx Subarray
- Independent beam control and switching
- 2D expandability to form large arrays
- Subarrays support 2D scanning
- Beam supports circular and linear polarization switchable
TECHNICAL PARAMETERS
| S/N | Items | Technical Parameters | Remarks | |
| 1 | Working Frequency | 27.5GHz ~ 30GHz | ||
| 2 | Polarization | LHCP/RHCP, switchable | ||
| 3 | Layout | Elements: Nx×Ny = 256 | ||
| Arrangement: rectangular grid | ||||
| 4 | Scanning Range | ±60° | ||
| 5 | EIRP | ≥67dBm @27.5GHz (Normal direction) | ||
| 6 | Scanning Loss @ 27.5GHz | Off-axis angle 30°: ≤2dB; | ||
| Off-axis angle 45°: ≤4dB; | ||||
| Off-axis angle 60°: ≤6dB; | ||||
| 7 | Sidelobe Suppression @ 27.5GHz | Normal direction: ≤10dB; | ||
| Off-axis angle 30°: ≤9dB; | ||||
| Off-axis angle 45°: ≤8dB; | ||||
| Off-axis angle 60°: ≤7dB; | ||||
| 8 | Axial Ratio @ 27.5GHz | Normal direction: ≤2dB; | ||
| Off-axis angle 30°: ≤4dB; | ||||
| Off-axis angle 45°: ≤5dB; | ||||
| Off-axis angle 60°: ≤6dB; | ||||
| 9 | VSWR | ≤2.0 | ||
| 10 | P1dB | ≤10dBm | ||
| 11 | Operating Voltage | 12V | ||
| 12 | Power Consumption | ≤150W | ||
| 13 | Working Temperature | -40℃ ~ +70℃ | ||
| 14 | Dimensions | 73.6mm*73.6mm*30mm | ||
| 15 | Interface Requirements | RF input | SSMP-JWHD9-L | |
| 16 | Weight | ≤0.4Kg | ||
